Simplicity Broadmoor 5008 1690008 Engine


Simplicity Broadmoor 5008 1690008 tractor photo
1974 - 1976
Broadmoor Series
Garden tractor
Series map:
Broadmoor 5008
Broadmoor 5010
8.0hp
10.0hp
Engine Detail
Briggs & Stratton
gasoline
1-cylinder
air-cooled
Displacement318 cc
19.44 ci
Bore/Stroke3.00x2.75 inches
76 x 70 mm
Power (gross)8 hp
6.0 kW
Air cleanerfoam element
Rated RPM3600
Idle RPM1400-3600
Starter volts12
Engine Oil

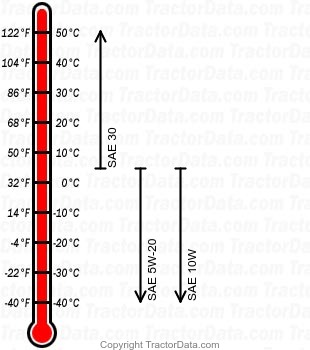

Broadmoor 5008 1690008 gasoline engine oil chart
Oil capacity1.1 qts
1.0 L
Oil change25 h
