Simplicity Broadmoor 738



Simplicity Broadmoor 738 tractor photo
1973 - 1974
Broadmoor Series
Garden tractor
Series map:
Broadmoor 738
8.0hp
Production
ManufacturerSimplicity
Garden tractor
The model Broadmoor 738 carried Simplicity model number 990898.
Simplicity Broadmoor 738 Engine
8HP Briggs & Stratton 318cc 1-cyl gasoline
Fuel tank1 gal
3.8 L
Engine details ...
Simplicity Broadmoor 738 Transmission
3-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
External band brakes
Open operator station.
Photos
Simplicity Broadmoor 738
Simplicity Broadmoor 738 photos...
Dimensions & Tires
Wheelbase41.5 inches
105 cm
Weight336 to 423 pounds
Front tire5.30x6
Rear tire18x9.50-8
Full dimensions and tires ...
Simplicity Broadmoor 738 attachments
36" mid-mount mower deck
snowblower
blade
Attachment details ...
Broadmoor 738 Serial Number Location

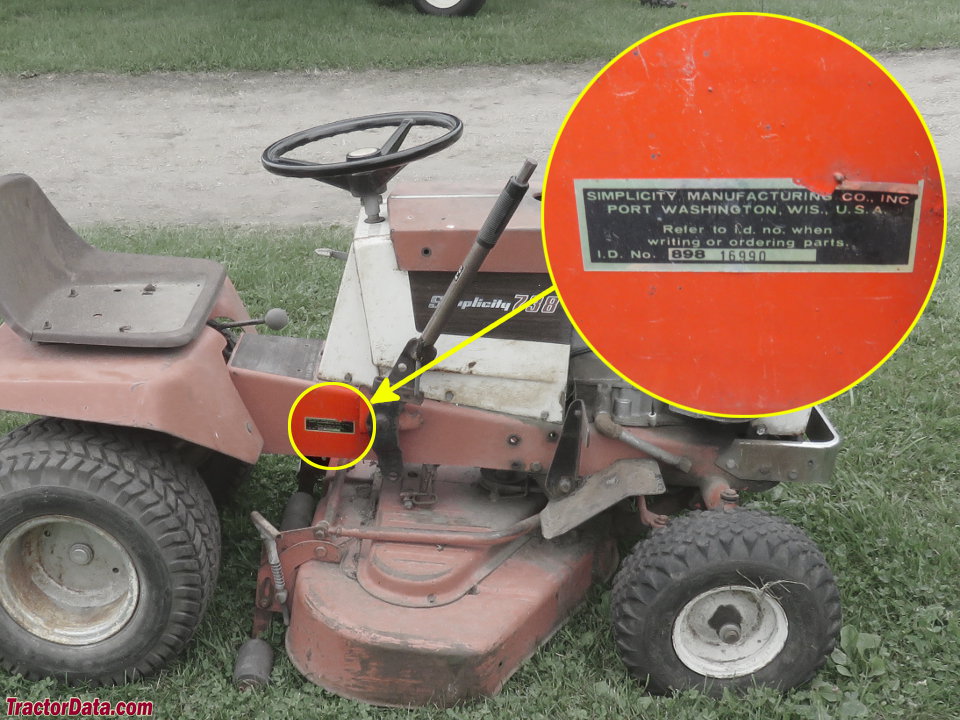

Simplicity Broadmoor 738 serial number location
Serial number tag on the right side of the Simplicity 738 tractor frame.
Electrical
Groundnegative
Battery volts12
Battery AH32
References
Broadmoor 738 references literature
Lawn Tractors published in 1973, by Simplicity
Tractors and Attachments published in 1974, by Simplicity
