| | 1973 - 1974 |
| Broadmoor Series | | Garden tractor |
|
Series map:
Broadmoor 738
8.0hp
| Engine Detail |
| Briggs & Stratton 191701 |
| gasoline |
| 1-cylinder |
| air-cooled |
| Displacement | 318 cc
19.44 ci
|
| Bore/Stroke | 3.00x2.75 inches
76 x 70 mm
|
| Power (gross) | 8 hp
6.0 kW
|
| Air cleaner | foam element
|
| Rated RPM | 3600
|
| Starter | electric
|
| Starter volts | 12
|

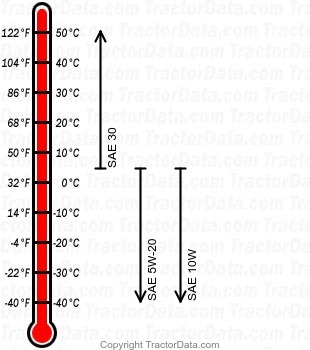

| Engine Oil |
|
| Oil capacity | 1.1 qts
1.0 L
|
| Oil change | 25 h
|
