Lawn Tractors > John Deere > X155R

John Deere X155R Engine



John Deere X155R tractor photo
2011 -
X100 Series
Lawn tractor
Series map:
X155R
12.5kw
Engine Detail
Briggs & Stratton 4055
gasoline
2-cylinder
air-cooled
Displacement655 cc
40 ci
Bore/Stroke2.97x2.89 inches
75 x 73 mm
Power (gross)16.8 hp
12.5 kW
Air cleanerpaper and foam
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Point gap0.010 inches
0.254 mm
Intake valve clearance0.005 inches
0.127 mm
Exhaust valve clearance0.005 inches
0.127 mm
Engine Oil

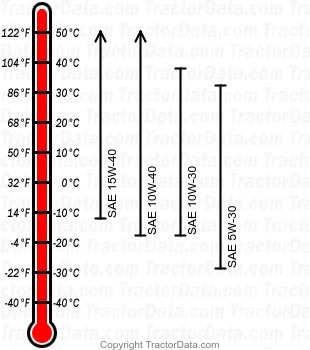

X155R gasoline engine oil chart
Oil capacity2.0 qts
1.9 L
