Lawn Tractors > John Deere > X140

John Deere X140 Engine



John Deere X140 tractor photo
2007 - 2010
X100 Series
Lawn tractor
Series map:
X120
X140
10.3kw
13.3kw
Engine Detail
Briggs & Stratton 40
gasoline
2-cylinder
air-cooled
Displacement655 cc
40 ci
Bore/Stroke2.97x2.89 inches
75 x 73 mm
Power (gross)17.8 hp
13.3 kW
Air cleanerpaper and foam
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Point gap0.010 inches
0.254 mm
Intake valve clearance0.005 inches
0.127 mm
Exhaust valve clearance0.005 inches
0.127 mm
Engine Oil

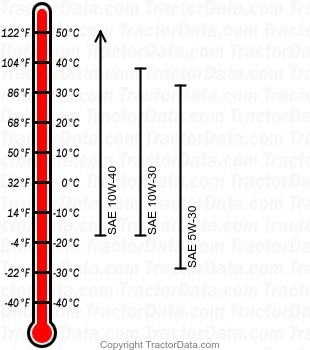

X140 gasoline engine oil chart
Oil capacity2.0 qts
1.9 L
