Lawn Tractors > John Deere > X110

John Deere X110 Engine



John Deere X110 tractor photo
2007 - 2010
X100 Series
Lawn tractor
Series map:
X110
X120
10.0kw
10.3kw
Engine Detail
Briggs & Stratton 31
gasoline
1-cylinder
air-cooled
Displacement501 cc
30.6 ci
Bore/Stroke3.57x3.06 inches
91 x 78 mm
Power (gross)13.4 hp
10.0 kW
Air cleanerpaper and foam
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Point gap0.012 inches
0.305 mm
Intake valve clearance0.004 inches
0.102 mm
Exhaust valve clearance0.006 inches
0.152 mm
Engine Oil

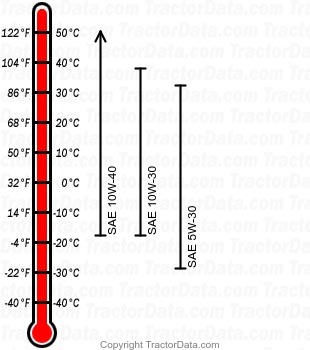

X110 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
