Lawn Tractors > Cub Cadet > 1864

Cub Cadet 1864 Engine



Cub Cadet 1864 tractor photo
1993 - 1997
Garden tractor
Series map:
1863
1864
18.0hp
18.0hp
Engine Detail
Kohler Command
gasoline
2-cylinder
air-cooled V-Twin OHV
Displacement624 cc
38.1 ci
Bore/Stroke3.03x2.64 inches
77 x 67 mm
Power (gross)18 hp
13.4 kW
Idle RPM1200-3600
Starterelectric
Starter volts12
Sparkplug gap0.040 inches
1.016 mm
Engine Oil

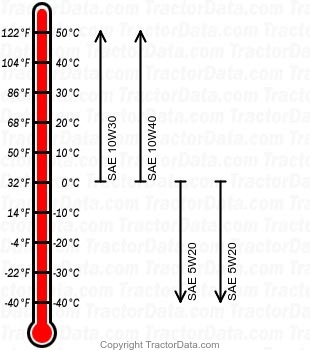

1864 gasoline engine oil chart
Oil capacity2 qts
1.9 L
