Cub Cadet 1535 Engine
|
|
| Engine Detail | |
| Kohler | |
| gasoline | |
| 2-cylinder | |
| air-cooled | |
| Displacement | 691 cc 42.18 ci |
| Bore/Stroke | 3.125x2.75 inches 79 x 70 mm |
| Power (gross) | 15 hp 11.2 kW |
| Idle RPM | 1200-3600 |
| Starter | electric |
| Starter volts | 12 |
| Sparkplug | 0.25 |
| Intake valve clearance | 0.004 inches*Cold 0.102 mm |
| Exhaust valve clearance | 0.012 inches*Cold 0.305 mm |

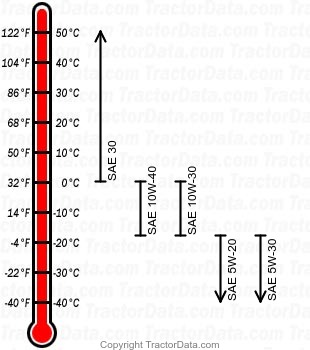

| Engine Oil | |
| |
| Oil capacity | 1.75 qts 1.7 L |
