Cub Cadet 1340 Engine


Cub Cadet 1340 tractor photo
1990 - 1991
Garden tractor
Series map:
1340
1535
12.5hp
15.0hp
Engine Detail
Kohler Command
gasoline
1-cylinder
air-cooled
Displacement398 cc
24.29 ci
Bore/Stroke3.43x2.64 inches
87 x 67 mm
Power (gross)12.5 hp
9.3 kW
Idle RPM1800-3400
Starterelectric
Starter volts12
Sparkplug gap0.040 inches
1.016 mm
Engine Oil

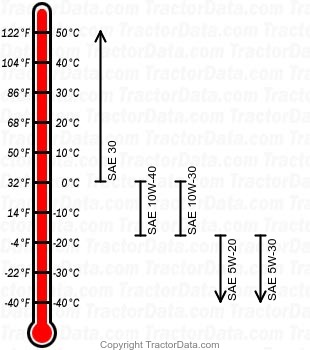

1340 gasoline engine oil chart
Oil capacity2 qts
1.9 L
