Engine Detail | |
Kohler M20S | |
gasoline | |
2-cylinder | |
air-cooled horizontal-shaft opposed-twin | |
Displacement | 770 cc 46.98 ci |
Bore/Stroke | 3.125x3.06 inches 79 x 78 mm |
Power (gross) | 20 hp 14.9 kW |
Idle RPM | 1200-3600 |
Starter | electric |
Starter volts | 12 |
Sparkplug gap | 0.025 inches 0.635 mm |
Intake valve clearance | 0.004 inches*Cold 0.102 mm |
Exhaust valve clearance | 0.012 inches*Cold 0.305 mm |

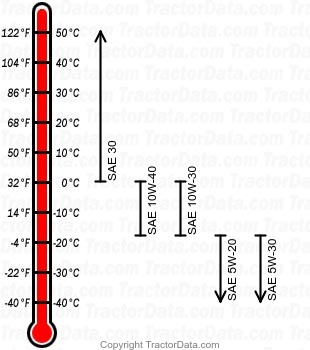

Engine Oil | |
Oil capacity | 2.75 qts 2.6 L |
