| | 1991 - 1992 |
| Garden tractor |
|
Series map:
1860
1861
1862
18.0hp
18.0hp
18.0hp
| Engine Detail |

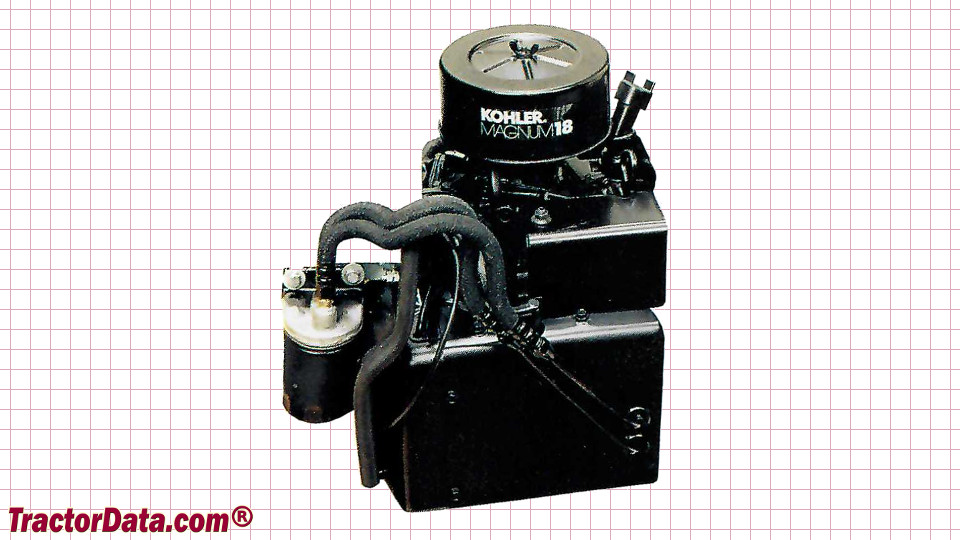

| Kohler Magnum M18 |
| gasoline |
| 2-cylinder |
| air-cooled horizontal-shaft opposed-twin |
| Displacement | 691 cc
42.18 ci
|
| Bore/Stroke | 3.125x2.75 inches
79 x 70 mm
|
| Power (gross) | 18 hp
13.4 kW
|
| Idle RPM | 1200-3600
|
| Starter | electric
|
| Starter volts | 12
|
| Oil capacity | 1.75 qts
1.7 L
|
| Cub Cadet 1861 Engine |
 |
