Lawn Tractors > Cub Cadet > 1912

Cub Cadet 1912 Engine



Cub Cadet 1912 tractor photo
1985 - 1986
Garden tractor
Series map:
1912
1914
19.9hp
19.9hp
Engine Detail
Onan B48G
gasoline
2-cylinder
air-cooled horizontal-shaft opposed-twin
Displacement781 cc
47.7 ci
Bore/Stroke3.25x2.875 inches
83 x 73 mm
Power (gross)19.9 hp
14.8 kW
Fuel systemcarburetor
Idle RPM1200-3400
Starterelectric
Starter volts12
SparkplugChampion RBL-154
Sparkplug gap0.025 inches
0.635 mm
Point gap0.021 inches
0.533 mm
Intake valve clearance0.008 inches (cold)
0.203 mm
Exhaust valve clearance0.013 inches (cold)
0.330 mm
Engine Oil

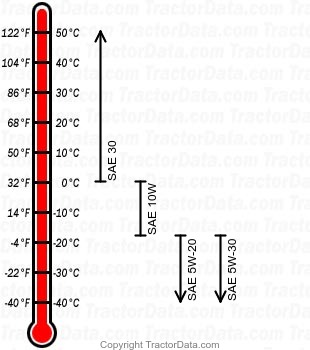

1912 gasoline engine oil chart
Oil capacity1.75 qts
1.7 L
Oil change50 h
