Lawn Tractors > Cub Cadet > 2072

Cub Cadet 2072 Engine



Cub Cadet 2072 tractor photo
1987 - 1989
Garden tractor
Series map:
1872
2072
18.0hp
20.0hp
Engine Detail
Kohler M20S
gasoline
2-cylinder
air-cooled horizontal-shaft opposed-twin
Displacement770 cc
46.98 ci
Bore/Stroke3.125x3.06 inches
79 x 78 mm
Power (gross)20 hp
14.9 kW
Idle RPM1200-3600
Starterelectric
Starter volts12
SparkplugChamption RBL-15Y
Sparkplug gap0.025 inches
0.635 mm
Intake valve clearance0.004 inches*Cold
0.102 mm
Exhaust valve clearance0.012 inches*Cold
0.305 mm
Engine Oil

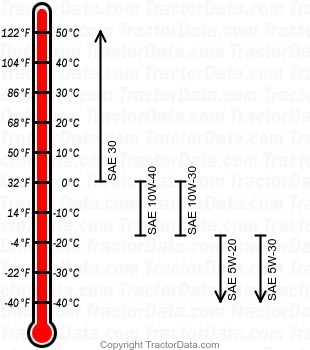

2072 gasoline engine oil chart
Oil capacity1.875 qts
1.8 L
Oil change50 h
