| | 2011 |
| PGT 9500 Series | | Garden tractor | | Simplicity built |
|
Series map:
107.28985
30.0hp
| Engine Detail |
| Briggs & Stratton Professional 49M877 |
| gasoline |
| 2-cylinder |
| air-cooled |
| Displacement | 810 cc
49.43 ci
|
| Power (gross) | 30 hp
22.4 kW
|
| Fuel system | carburetor with electronic fuel management
|
| Air cleaner | cartridge
|
| Starter | electric
|
| Starter volts | 12
|
| Sparkplug gap | 0.030 inches
0.762 mm
|

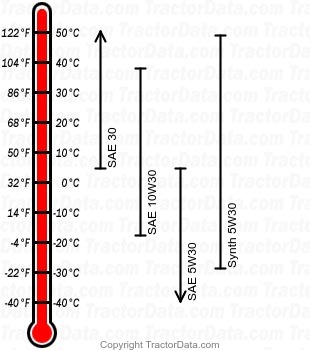

| Engine Oil |
|
