Craftsman 917.27691 Engine


Craftsman 917.27691 tractor photo
2006
GS6500 Series
Garden tractor
AYP built
Series map:
917.27691
917.27692
26.0hp
26.0hp
Engine Detail
Kohler CV730
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement721 cc
44 ci
Bore/Stroke3.3x2.6 inches
84 x 66 mm
Power (gross)26 hp
19.4 kW
Air cleanerpaper cartridge
Rated RPM3600
Starterelectric
Starter volts12
SparkplugChampion RC12YC
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

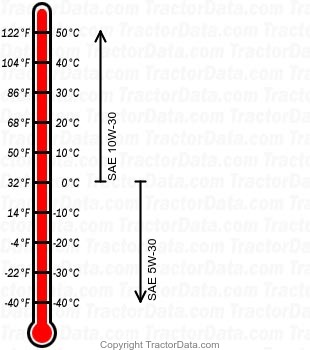

917.27691 gasoline engine oil chart
Oil capacity2 qts
1.9 L
