Lawn Tractors > Craftsman > 917.27622

Craftsman 917.27622 Engine



Craftsman 917.27622 tractor photo
2006
GT5000 Series
Garden tractor
AYP built
Engine Detail
Briggs & Stratton 40H777
gasoline
2-cylinder
air-cooled
Displacement656 cc
40.03 ci
Bore/Stroke2.97x2.89 inches
75 x 73 mm
Power (gross)22 hp
16.4 kW
Air cleanerpaper cartridge
Rated RPM3600
Starterelectric
Starter volts12
SparkplugChampion QC12YC
Sparkplug gap0.040 inches
1.016 mm
Engine Oil
917.27622 gasoline engine oil chart
Oil capacity2 qts
1.9 L

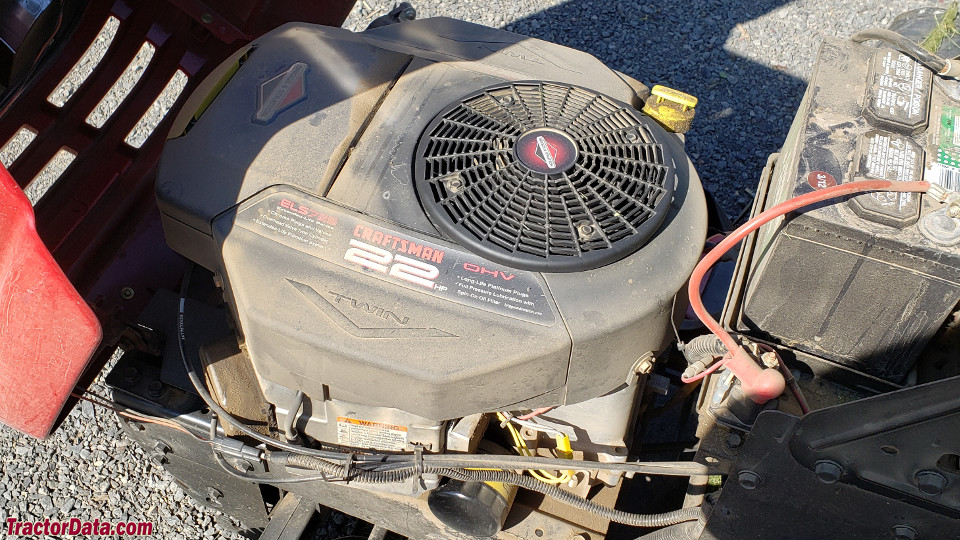

Craftsman 917.27622 Engine
Craftsman 917.27622 engine image
Image courtesy of Brian Jennings
