Lawn Tractors > Craftsman > 917.27566

Craftsman 917.27566 Engine



No photo available
2005
Lawn tractor
AYP built
Engine Detail
Kohler SV600
gasoline
1-cylinder
air-cooled
Displacement596 cc
36.4 ci
Bore/Stroke3.7x3.4 inches
94 x 86 mm
Power (gross)20.0 hp
14.9 kW
Compression8.5:1
Rated RPM3600
Starterelectric
Starter volts12
SparkplugChampion RC12YC
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

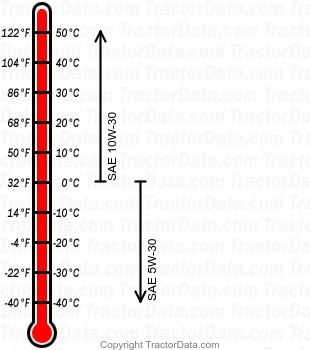

917.27566 gasoline engine oil chart
Oil capacity1.75 qts
1.7 L
