Craftsman 917.27609
|
|
| Production | |
| Distributor | Craftsman (a part of Sears) |
| Manufacturer | AYP |
| Garden tractor | |
| Craftsman 917.27609 Engine | |
| 25HP Kohler 721cc 2-cyl gasoline | |
| Fuel tank | 5 gal 18.9 L |
 Engine details ... | |
| Craftsman 917.27609 Transmission | |
| 6-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station |
| Photos | |
| No photos of the Craftsman 917.27609 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | electric |
| Dimensions & Tires | |
| Front tire | 16x6.50-8 |
| Rear tire | 23x10.50-12 |
 Full dimensions and tires ... | |
| Craftsman 917.27609 attachments | |
| 54" mid-mount mower deck | |
 Attachment details ... |

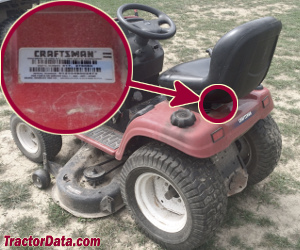

| 917.27609 Serial Number Location | |
 | |
| Serial number plate on top of the rear fender deck, below the seat. |
| Electrical | |
| Ground | negative |
| Charging amps | 15 |
| Battery CCA | 280 |
| Battery volts | 12 |
| Battery AH | 35 |
| Battery Group | U1R |
| References | |
 | |
| 2004 Riding Equipment published by Sears |
