Lawn Tractors > Craftsman > 917.27337

Craftsman 917.27337 Engine



Craftsman 917.27337 tractor photo
2004
LT 1000 Series
Lawn tractor
AYP built
Engine Detail
Briggs & Stratton 31C707
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement501 cc
30.6 ci
Bore/Stroke3.56x3.062 inches
90 x 78 mm
Power (gross)17.5 hp
13.0 kW
Starterelectric
Starter volts12
SparkplugChampion RC12YC
Sparkplug gap0.030 inches
0.762 mm

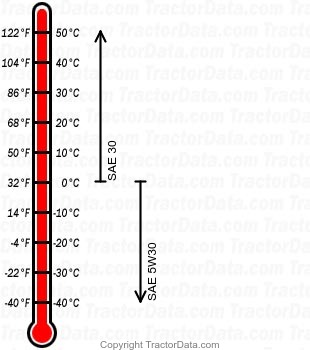

Engine Oil
917.27337 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
