Lawn Tractors > Craftsman > 917.28947

Craftsman 917.28947 Transmission



Craftsman 917.28947 tractor photo
2009 - 2010
GT5000 Series
Garden tractor
Husqvarna built
Transmission
TransmissionHydro Gear G730
Typebelt-driven hydrostatic
Gearsinfinite forward and reverse
Speeds

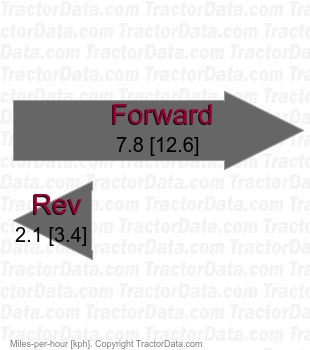

917.28947 G730 belt-driven hydrostatic speeds

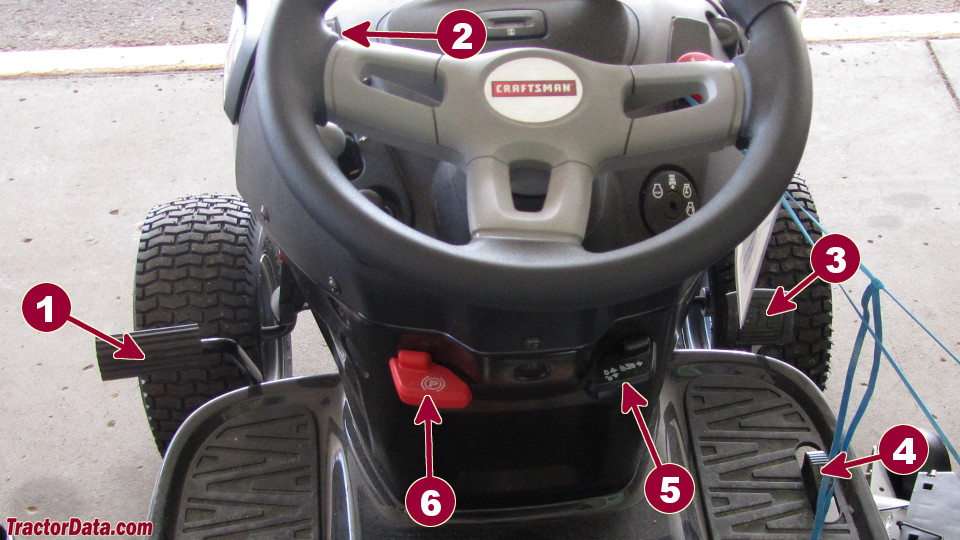

917.28947 Transmission Controls
Craftsman 917.28947 transmission controls
1Brake
2Throttle
3Forward
4Reverse
5Cruise control
6Parking brake
