| | 1989 - 2001 |
| Professional G Series | | Garden tractor |
|
Series map:
20-G
24-G
20.0hp
24.0hp
| Engine Detail |
| Onan P224 |
| gasoline |
| 2-cylinder |
| air-cooled horizontal-shaft horizontally-opposed |
| Displacement | 978 cc
59.7 ci
|
| Bore/Stroke | 3.56x3.00 inches
90 x 76 mm
|
| Power (gross) | 24 hp
17.9 kW
|
| Rated RPM | 3300
|
| Starter | electric
|
| Starter volts | 12
|
| Oil capacity | 3 qts
2.8 L
|

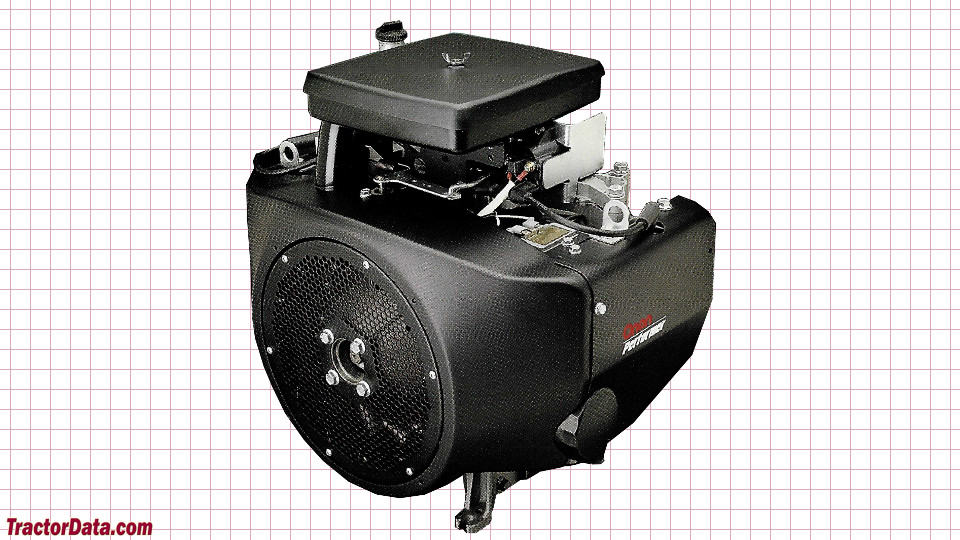

| Gravely 24-G Engine |
 |
