Gravely 8102 Transmission


Gravely 8102 tractor photo
1979 - 1981
8000 Series
Garden tractor
Series map:
8102
8122
10.0hp
12.0hp
Transmission
Typegear
Gears8 forward and 4 reverse
Oil capacity6 qts
5.7 L
Oil type
10W-40 SC
Four gears (1-4) in two ranges (low-high) with forward/reverse clutches. The directional clutch must be in neutral to shift gears or ranges.

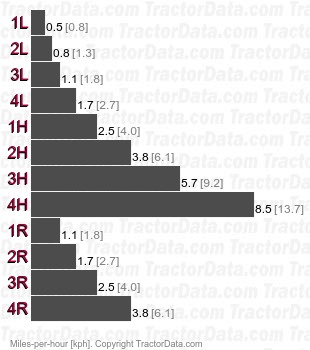

Speeds
8102  gear speeds
