Gravely 816 Engine


Gravely 816 tractor photo
1972 - 1978
800 Series
Garden tractor
Series map:
816S
816
817
16.0hp
16.5hp
16.5hp
Engine options
16.5HP Onan 816cc 2-cyl gasoline
16HP Onan 716cc 2-cyl gasoline
Engine Detail
Onan CCKA
gasoline
2-cylinder
air-cooled horizontal-shaft opposed-twin
The CCKA was used for the first seven years of production on the 816, up until 1978.
Displacement816 cc
49.80 ci
Bore/Stroke3.00x3.25 inches
76 x 83 mm
Power16.5 hp
12.3 kW
Rated RPM3600
Starterelectric
Starter volts12
Sparkplug gap0.025 inches
0.635 mm
Intake valve clearance0.011 inches
0.279 mm
Exhaust valve clearance0.011 inches
0.279 mm
Engine Oil

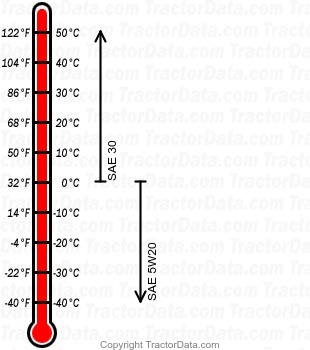

816 gasoline engine oil chart
Oil capacity2 qts
1.9 L
Engine Detail
Onan B43M
gasoline
2-cylinder
air-cooled
The B43M was used on the Gravely 816 for the final production year, in 1978.
Displacement716 cc
43.7 ci
Bore/Stroke3.25x2.62 inches
83 x 67 mm
Power16 hp
11.9 kW
Rated RPM3600
Starterelectric
Starter volts12
