Lawn Tractors > Gravely > 810

Gravely 810 Engine



Gravely 810 tractor photo
1973 - 1978
800 Series
Garden tractor
Series map:
810
812
10.0hp
12.0hp
Engine Detail
Kohler K241
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement391 cc
23.9 ci
Bore/Stroke3.25x2.88 inches
83 x 73 mm
Power10 hp
7.5 kW
Air cleanerdry
Rated RPM3600
Starterelectric
Starter volts12
Sparkplug gap0.025 inches
0.635 mm
Intake valve clearance0.009 inches
0.229 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

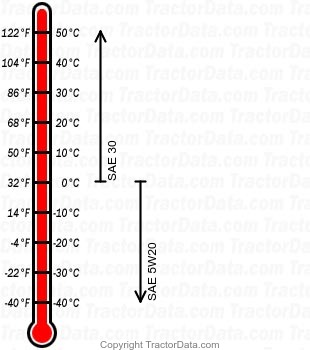

810 gasoline engine oil chart
Oil capacity2.5 qts
2.4 L
