| | 1981 - 1985 |
| 100 Lawn Series | | Lawn tractor |
|
Series map:
112L
116
116H
12.5hp
16.0hp
16.0hp
| Engine Detail |
| Briggs & Stratton 402707 |
| gasoline |
| 2-cylinder |
| air-cooled |
| Displacement | 655 cc
40 ci
|
| Bore/Stroke | 3.44x2.16 inches
87 x 55 mm
|
| Power | 16 hp
11.9 kW
|
| Starter | electric
|
| Starter volts | 12
|
| Sparkplug | AC R046
|
| | Champion RJ-12
|
| | Autolite 308
|
| Sparkplug gap | 0.030 inches
0.762 mm
|

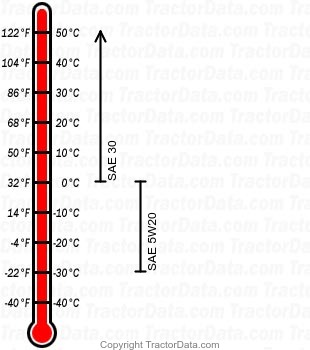

| Engine Oil |
|
| Oil capacity | 1.5 qts
1.4 L
|

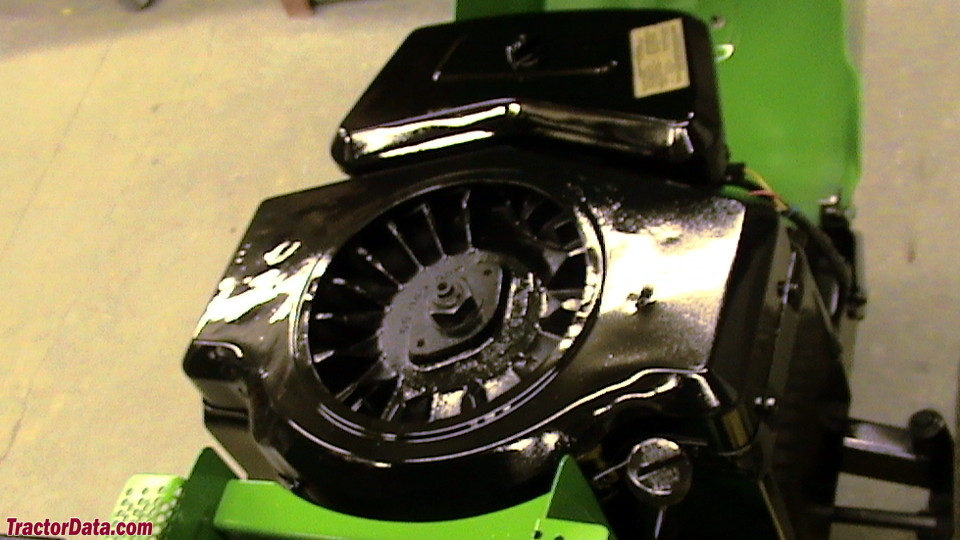

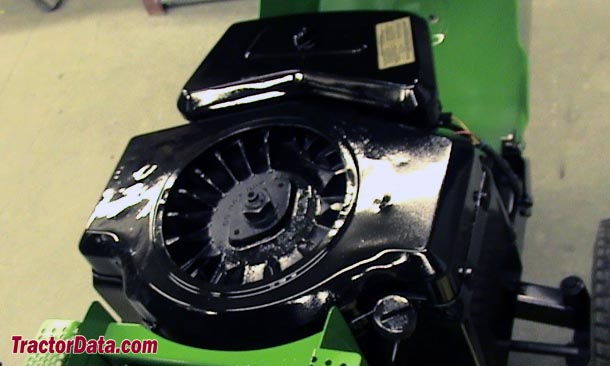

| John Deere 116 Engine |
 |
| Image courtesy of Matthew Marchand |
