John Deere 111 Engine


John Deere 111 tractor photo
1979 - 1985
100 Lawn Series
Lawn tractor
Series map:
108
111
111H
8.0hp
11.0hp
11.0hp
Engine Detail
Briggs & Stratton 252707
gasoline
1-cylinder
air-cooled
Displacement399 cc
24.4 ci
Bore/Stroke3.4375x2.625 inches
87 x 67 mm
Power11 hp
8.2 kW
Rated RPM3600
Starterelectric
Starter volts12
SparkplugAC CS-45
 Champion CJ-8
 Autolite A79
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

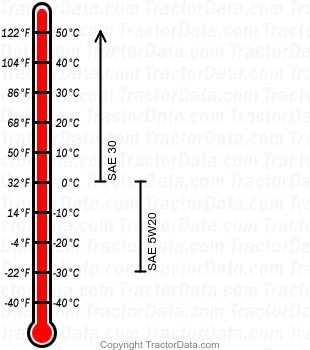

111 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
