J.I. Case 224 Transmission


J.I. Case 224 tractor photo
1973 - 1988
200 Series
Garden tractor
Series map:
222
224
226
12.0hp
14.0hp
16.0hp
Transmission
TransmissionHy-Drive
Typehydraulic drive
Gearsinfinite forward and reverse (2-range)
Oil capacity6.5 qts
6.2 L
Oil type
32oF [0oC] : SAE20W40
32oF [0oC] : SAE5W20

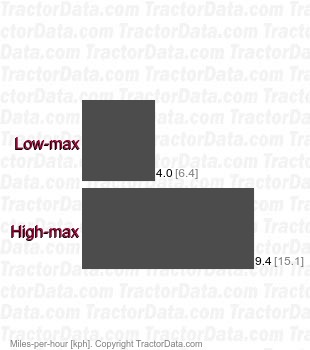

Speeds
224 Hy-Drive hydraulic drive speeds
