Series map:
130
180
10.0hp
12.0hp
| Engine Detail |
| Kohler K241 |
| gasoline |
| 1-cylinder |
| air-cooled |
| Displacement | 391 cc
23.9 ci
|
| Bore/Stroke | 3.25x2.875 inches
83 x 73 mm
|
| Power (gross) | 10 hp
7.5 kW
|
| Rated RPM | 3600
|
| Starter volts | 12
|

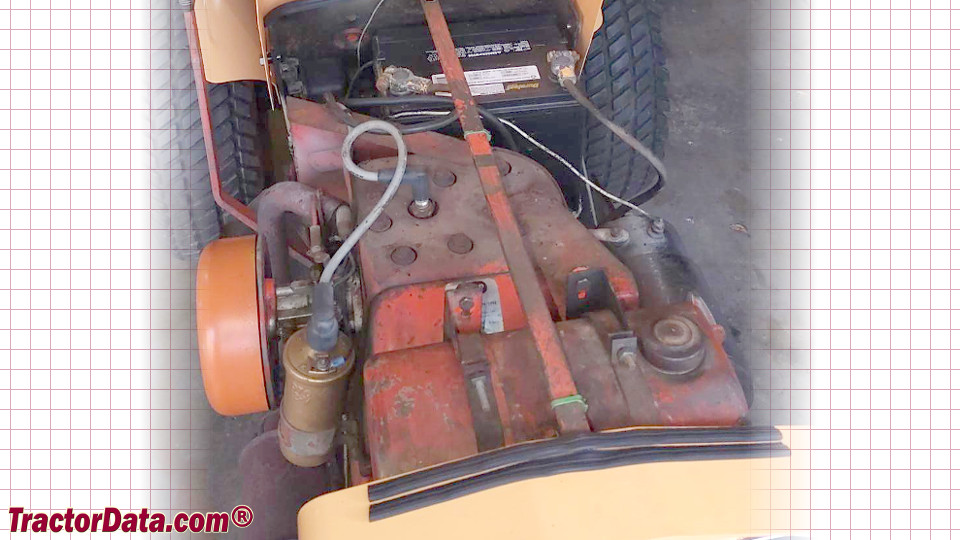

| J.I. Case 130 Engine |
 |
| Image courtesy of Bradley Tatro |
