Lawn Tractors > Scotts > S1742

Scotts S1742

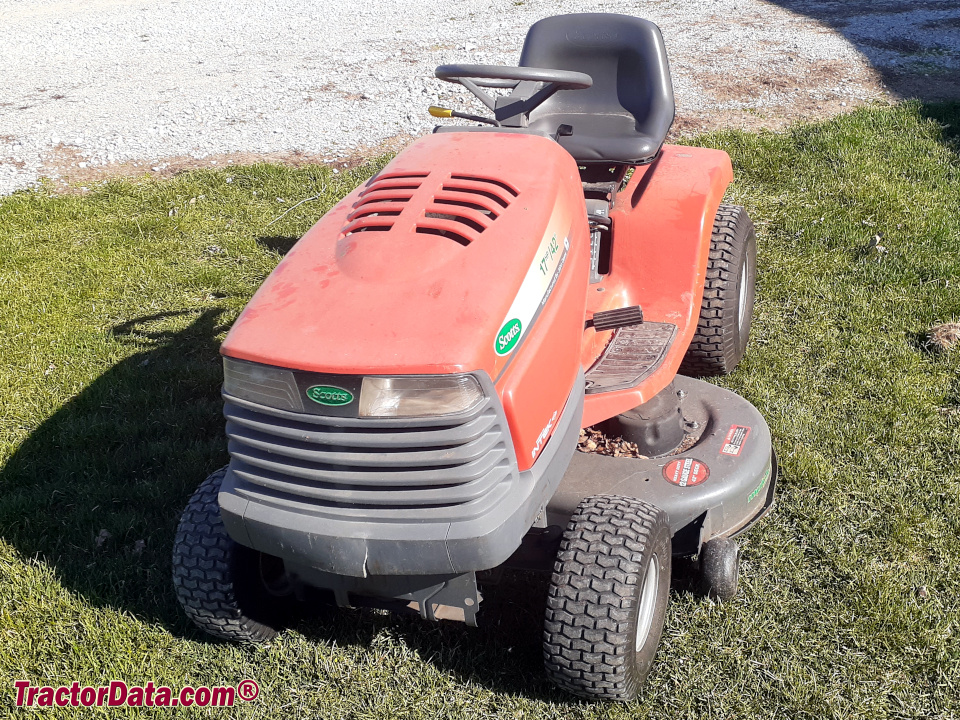

Scotts S1742 tractor photo
1999 - 2001
Lawn tractor
John Deere built
Series map:
S1642
S1742
S2046
16.0hp
17.0hp
20.0hp
Production
DistributorScotts
ManufacturerJohn Deere
Lawn tractor
Built in Greeneville, Tennessee, USA
Scotts S1742 Engine
17HP Briggs & Stratton 465cc 1-cyl gasoline
Fuel tank1.25 gal
4.7 L
Engine details ...
Scotts S1742 Transmission
5-speed unsynchronized gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.
Photos
Scotts S1742
Scotts S1742 photos...
Dimensions & Tires
Weight388 lbs
175 kg
Front tire15x6.50-6
Rear tire20x8.0-8
Full dimensions and tires ...
Scotts S1742 attachments
42" mid-mount mower deck
Attachment details ...
S1742 Serial Numbers
Location:Serial number plate on fender deck under seat.
1999010001
2000035001
2001120001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Battery CCA190
Battery volts12
Battery GroupBCI Group U1
References
S1742 references literature
Scotts Lawn Tractors S1642, S1742, and S2046 (OMGX10342) published in 1998
Scotts Lawn Tractors S1642, S1742, and S2046 (OMGX10784 )
