Lawn Tractors > John Deere > LA135

John Deere LA135 Transmission



John Deere LA135 tractor photo
2008 - 2010
LA105 Series
Lawn tractor
Series map:
LA125
LA135
LA145
21.0hp
22.0hp
22.0hp
Transmission
TransmissionTuff Torq T40
Typebelt-driven hydrostatic
Gearsinfinite forward and reverse
Oil changesealed unit, owner service is not recommended
Speeds
LA135 T40 belt-driven hydrostatic speeds
LA135 Transmission Controls

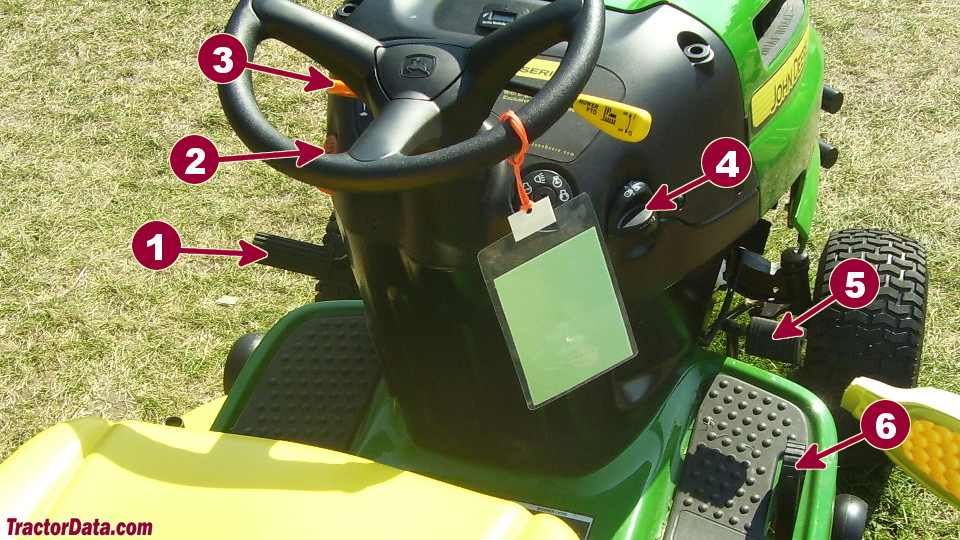

John Deere LA135 transmission controls
1Brake
2Parking brake
3Throttle
4Cruise control
5Forward
6Reverse
