John Deere LA135 Engine



John Deere LA135 tractor photo
2008 - 2010
LA105 Series
Lawn tractor
Series map:
LA125
LA135
LA145
21.0hp
22.0hp
22.0hp
Engine Detail
Briggs & Stratton
gasoline
2-cylinder
air-cooled
Displacement655 cc
40 ci
Bore/Stroke2.97x2.89 inches
75 x 73 mm
Power22 hp
16.4 kW
Air cleanerpaper and foam elements
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Intake valve clearance0.005 inches
0.127 mm
Exhaust valve clearance0.005 inches
0.127 mm
Engine Oil

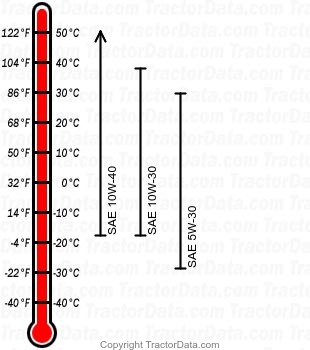

LA135 gasoline engine oil chart
Oil capacity2 qts
1.9 L
