Lawn Tractors > Ford > LGT-17

Ford LGT-17 Transmission



Ford LGT-17 tractor photo
1983 - 1986
Garden tractor
Series map:
LGT-17
17.0hp
Transmission options
4-speed gear
hydrostatic
Transmission
Typebelt-driven gear
Gears4 forward and 1 reverse
Oil capacity2 qts
1.9 L
Oil type
EP 140
Speeds

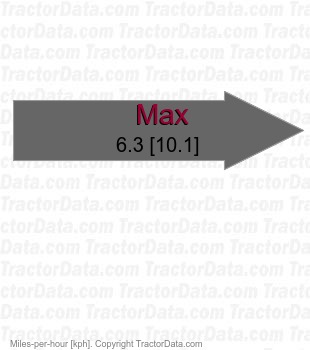

LGT-17 belt-driven gear speeds
Transmission
TransmissionEaton 11
Typeshaft-driven hydrostatic
Gearsinfinite forward and reverse (2-range)
Oil capacity6 qts
5.7 L
Oil type
SAE 20
Speeds

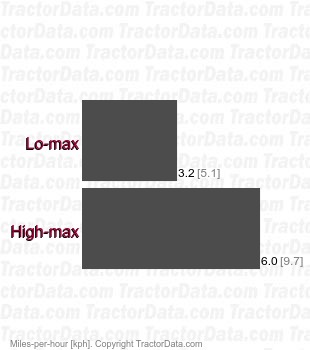

LGT-17 11 shaft-driven hydrostatic speeds
