John Deere LX255 Engine


John Deere LX255 tractor photo
1999 - 2001
LX200 Series
Lawn tractor
Series map:
LX255
15.0hp
Engine Detail
Kohler CV15S-41571
gasoline
1-cylinder
air-cooled
Displacement426 cc
26 ci
Bore/Stroke3.55x2.64 inches
90 x 67 mm
Power15 hp
11.2 kW
Air cleanerpaper with foam pre-cleaner
Compression8.5:1
Torque25.3 lb-ft
34.3 Nm
Torque RPM2400
Starter volts12
Sparkplug gap0.040 inches
1.016 mm
Engine Oil

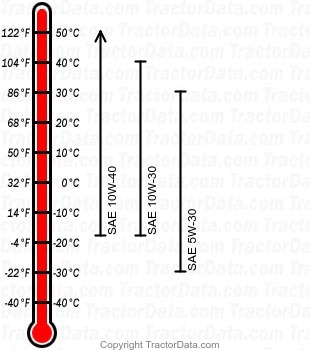

LX255 gasoline engine oil chart
Oil capacity1.9 qts
1.8 L
