Wheel Horse C-175 Transmission


Wheel Horse C-175 tractor photo
1980 - 1984
C Series
Garden tractor
Series map:
C-165
C-175
C-195
16.0hp
17.0hp
19.0hp
Transmission options
6-speed gear
hydrostatic
Transmission
ManufacturerWheel Horse
Typebelt-driven gear
Gears6 forward and 2 reverse
Oil capacity2 qts
1.9 L
Speeds
C-175  belt-driven gear speeds
Transmission
TransmissionEaton 1100
Typebelt-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity5 qts
4.7 L
The Eaton hydrostatic was used through the productio run of the C-175. A Sundstrand 90 hydrostatic was also used during the 1980 production year, identified by tractor model code 01-17KS02.

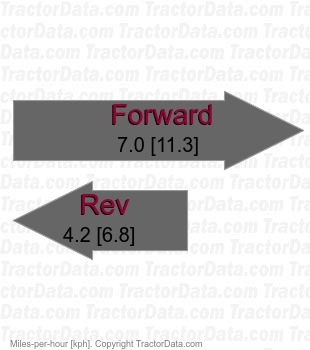

Speeds
C-175 1100 belt-driven hydrostatic speeds

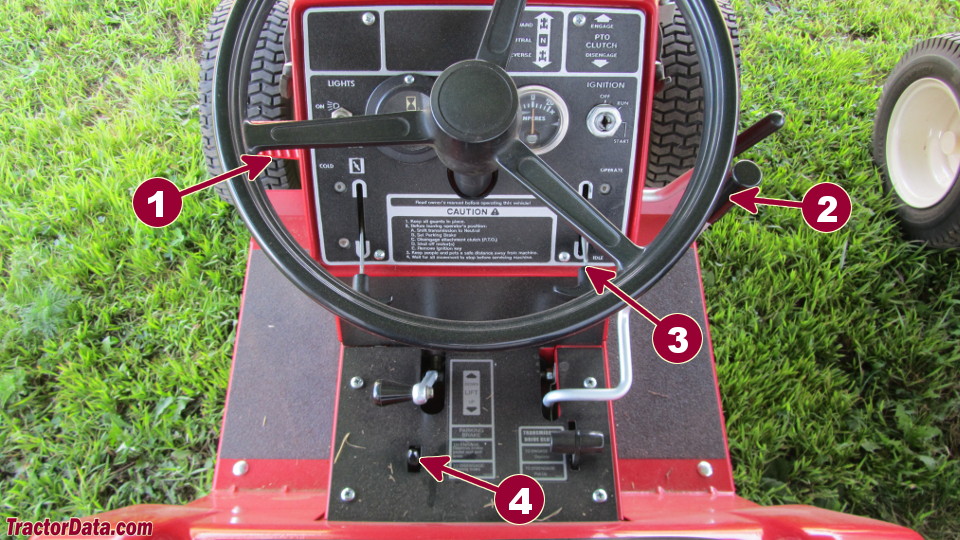

C-175 Transmission Controls
Wheel Horse C-175 transmission controls
1Brake
2Forward/reverse
3Throttle
4Parking brake
