Wheel Horse C-145 Engine


Wheel Horse C-145 tractor photo
1980 - 1984
C Series
Garden tractor
Series map:
C-125
C-145
C-165
12.0hp
14.0hp
16.0hp
Engine Detail
Kohler K321AS
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement512 cc
31.27 ci
Bore/Stroke3.50x3.25 inches
89 x 83 mm
Power (gross)14 hp
10.4 kW
Air cleanerdry element
Starterelectric
Starter volts12
SparkplugChampion H-10
Sparkplug gap0.025 inches
0.635 mm
Point gap0.020 inches
0.508 mm
Engine Oil

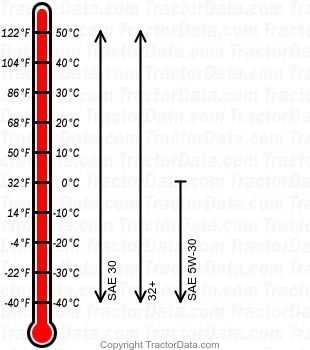

C-145 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
Oil change25 h
