Wheel Horse C-121 Engine


Wheel Horse C-121 tractor photo
1978 - 1979
C Series
Garden tractor
Series map:
C-101
C-121
C-141
10.0hp
12.0hp
14.0hp

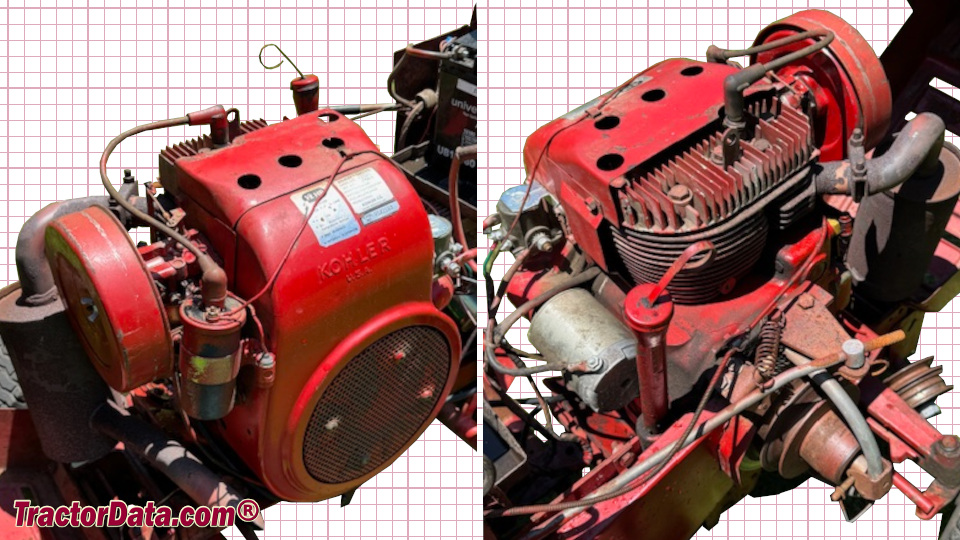

Engine Detail
Kohler K301AS
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement476 cc
29.07 ci
Bore/Stroke3.38x3.25 inches
86 x 83 mm
Power (gross)12 hp
8.9 kW
Rated RPM3400
Starterelectric
Starter volts12
Oil capacity1.5 qts
1.4 L
Sparkplug gap0.025 inches
0.635 mm
Point gap0.020 inches
0.508 mm
