Lawn Tractors > Wheel Horse > B-80

Wheel Horse B-80 Transmission



Wheel Horse B-80 tractor photo
1974 - 1977
B Series
Garden tractor
Series map:
B-60
B-80
B-100
7.0hp
8.0hp
10.0hp
Transmission options
3-speed gear
6-speed gear
Transmission
TransmissionWheel Horse
Typebelt-driven gear
Gears3 forward and 1 reverse
The original transmission, used through the 1975 production year of the B-80.
Speeds

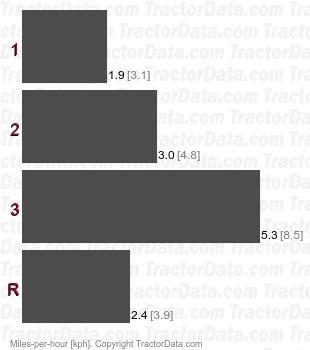

B-80 belt-driven gear speeds
Transmission
TransmissionWheel Horse
Typebelt-driven gear
Gears6 forward and 2 reverse
The two-range transmission was used on the B-80 beginning in 1976.
Speeds

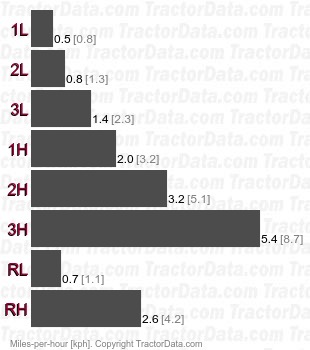

B-80 belt-driven gear speeds
