Kubota G5200 Engine


Kubota G5200 tractor photo
1984 - 1990
G Series
Garden tractor
Series map:
G4200
G5200
G6200
12.0hp
14.0hp
16.0hp
Engine Detail
Kubota D600
diesel
3-cylinder
liquid-cooled
Displacement599 cc
36.6 ci
Bore/Stroke2.52x2.45 inches
64 x 62 mm
Power (gross)14 hp
10.4 kW
Pre-heatingglow plugs
Rated RPM3200
Starter volts12
Starter power0.94 hp
0.7 kW
Coolant capacity2.2 qts
2.1 L
Engine Oil

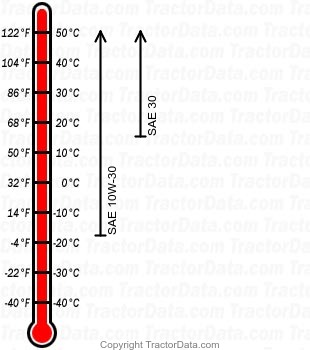

G5200 diesel engine oil chart
Oil capacity3.2 qts
3.0 L
