Lawn Tractors > Jacobsen > Chief 800

Jacobsen Chief 800 Transmission



Jacobsen Chief 800 tractor photo
1964 - 1969
Garden tractor
Series map:
Chief 800
Chief 1000
8.0hp
10.0hp
Transmission options
3-speed gear
4-speed gear
Transmission
TransmissionPeerless
Typebelt-driven gear
Gears3 forward and 1 reverse
Clutchmanual idler pulley
Three-speed transmission used on the Chief 800 in 1964 and 1965.
Speeds
Chief 800 belt-driven gear speeds
Transmission
TransmissionPeerless 2300
Typebelt-driven gear
Gears4 forward and 1 reverse
Clutchmanual idler pulley
The four-speed transmission was introduced for the 1966 model year, Chief 800 model 53033.
Speeds

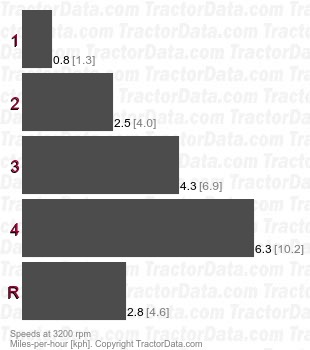

Chief 800 2300 belt-driven gear speeds
