Wheel Horse D-250
| | 1976 - 1981 |
| D Series | | Garden tractor | | Gutbrod built |
|
Series map:
D-200
D-250
19.9hp
19.9hp
| Production |
| Distributor | Wheel Horse
|
| Manufacturer | Gutbrod
|
| Garden tractor |
| Built in Bubingen, Germany |
| Original price | $4,200 (1976 )
|
| $4,475 (1977 )
|
| $4,795 (1978 )
|
| The Wheel Horse D-250 was built by Gutbrod of Germany and was similar to the Gutbrod 2500S. An adapter kit (8-3225) was available to convert the D-250's rear PTO to a standard 540 RPM clockwise rotation. |
| Mechanical |
| Two-wheel drive |
| Differential lock | mechanical rear
|
| Manual steering |
| Drum brakes |
| Open operator station. |
| Capacity |
| Fuel | 3.7 gal
14.0 L
|
| Hydraulic system | 0.65 gal
2.5 L
|
| Hydraulics |
| Capacity | 0.65 gal
2.5 L
|
| Pressure | 2100 psi
144.8 bar
|
| Front valves | 2
|
| Total flow | 2.14 gpm
8.1 lpm
|
| Tractor hitch |
| Rear Type | 0 OptOptional
|
| Power Take-off (PTO) |
| Rear PTO | transmission
|
| Rear PTO Type | 35mm
|
| Engine RPM | 1000@3000 (CCW)
|
| Front PTO | independent
|
| Clutch | manual idler pulley
|
| Engine RPM | 1500@3000
|

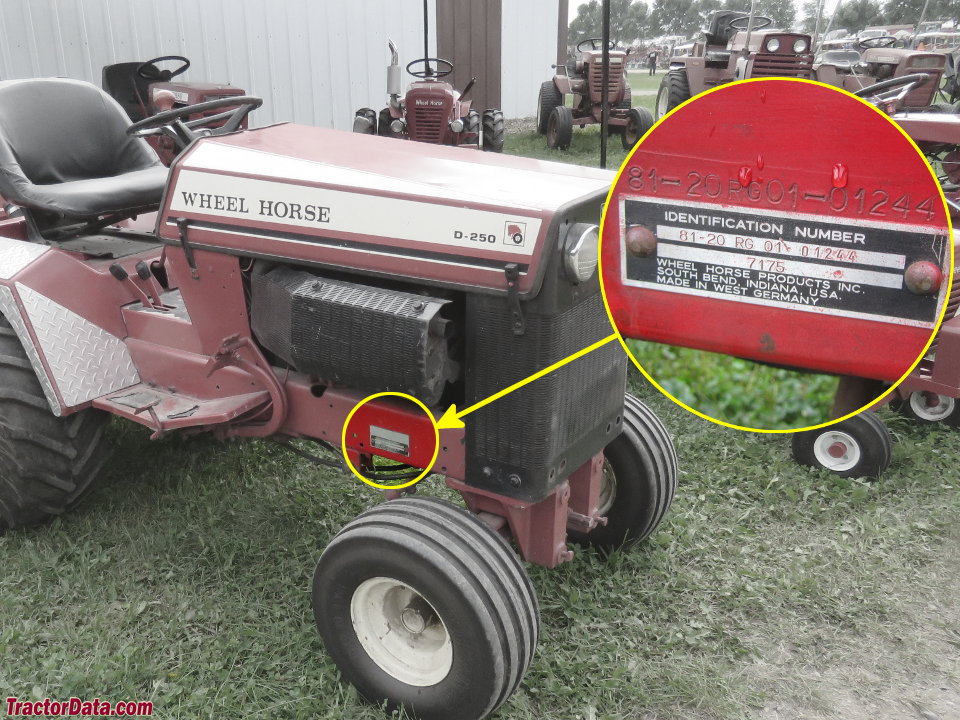

| D-250 Serial Number Location |
 |
| Serial number tag on right side of tractor frame, above front axle. Model code indicated in parenthesis. |
| Electrical |
| Ground | negative
|
| Battery volts | 12
|
| Battery AH | 18
|
| References |
 |
| 1976 Wheel Horse as basic as ABCD |
| Wheel Horse 1977 |
| WHeel Horse '78 published in 1978, by Wheel Horse |
| WHeel Horse '79 published in 1979, by Wheel Horse |
| Wheel Horse published in 1980 |
| 1976 Dealer Sales Manual published in 1975, by Wheel Horse |
| 1977 Dealer Sales Manual published in 1976, by Wheel Horse |
| 1978 Dealer Sales Manual published in 1977, by Wheel Horse |
