Lawn Tractors > Cub Cadet > 169

Cub Cadet 169 Engine



Cub Cadet 169 tractor photo
1974
1X8/1X9 Series
Garden tractor
Series map:
149
169
14.0hp
16.0hp
Engine Detail
Kohler K341A
gasoline
1-cylinder
air-cooled
Displacement588 cc
35.9 ci
Bore/Stroke3.75x3.25 inches
95 x 83 mm
Power16 hp
11.9 kW
Rated RPM3400
Idle RPM1000-3600
Starter volts12
SparkplugChampion H-10
Sparkplug gap0.025 inches
0.635 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.010 inches*Cold
0.254 mm
Exhaust valve clearance0.020 inches*Cold
0.508 mm
Engine Oil

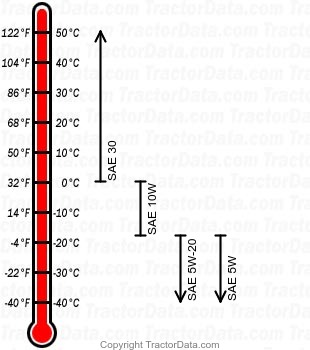

169 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
Oil change30 h
