Lawn Tractors > Cub Cadet > 127

Cub Cadet 127 Engine



Cub Cadet 127 tractor photo
1969 - 1971
1X6/1X7 Series
Garden tractor
Series map:
126
127
147
12.0hp
12.0hp
14.0hp
Engine Detail
Kohler K301A
gasoline
1-cylinder
air-cooled
Displacement476 cc
29.07 ci
Bore/Stroke3.385x3.25 inches
86 x 83 mm
Power12 hp
8.9 kW
Compression6:1
Rated RPM3600
Idle RPM1000-3800
Torque19.6 lb-ft
26.6 Nm
Torque RPM2200
Starter volts12
SparkplugChampion H-10
Sparkplug gap0.025 inches
0.635 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.010 inches (cold)
0.254 mm
Exhaust valve clearance0.020 inches (cold)
0.508 mm
Engine Oil

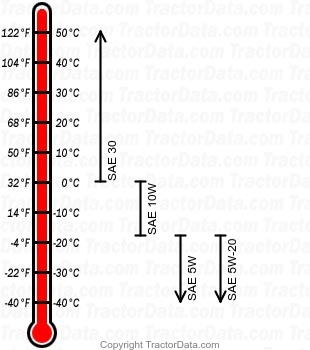

127 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
