| | 1969 - 1971 |
| 1X6/1X7 Series | | Garden tractor |
|
Series map:
73
106
7.0hp
10.0hp
| Transmission options |
| 3-speed gear |
| 6-speed |
| Transmission |
| Type | gear
|
| Gears | 3 forward and 1 reverse
|
| Clutch | 4.5-inch dry disc
|
| Oil capacity | 3.5 qts
3.3 L
|
| Oil type |
|

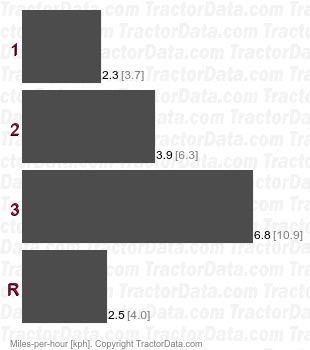

| Speeds |
|

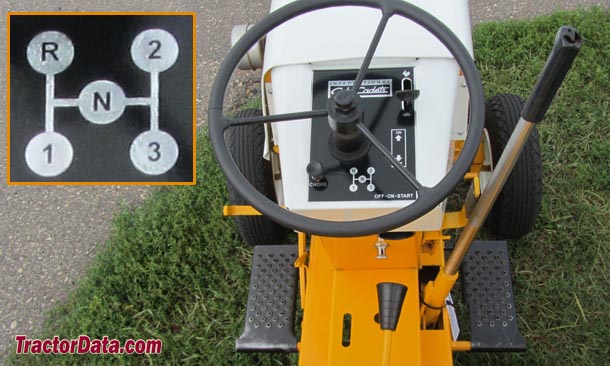

| Shift Pattern |
 |
| 73 Transmission Controls |
 |
| 1 | Clutch/brake
|
| 2 | Throttle
|
| 3 | Gear shift
|
| Transmission |
| Transmission | creeper
|
| Gears | 6 forward and 2 reverse
|
| Clutch | 4.5-inch dry disc
|
| Oil capacity | 3.5 qts (trans)
3.3 L
|
| | 0.5 qts (creeper)
0.5 L
|
| Oil type |
|
| Optional creeper range is engaged by a lever on the left side of the drive line. |

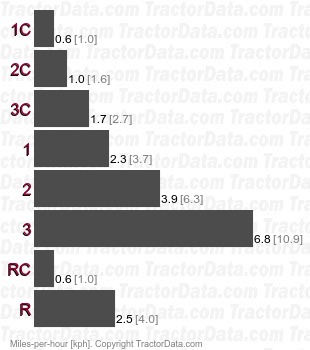

| Speeds |
|
