Lawn Tractors > Cub Cadet > 125

Cub Cadet 125 Engine



Cub Cadet 125 tractor photo
1967 - 1969
1X4/1X5 Series
Garden tractor
Series map:
124
125
12.0hp
12.0hp
Engine Detail
Kohler K301AS
gasoline
1-cylinder
air-cooled
Displacement479 cc
29.25 ci
Bore/Stroke3.385x3.25 inches
86 x 83 mm
Power12 hp
8.9 kW
Rated RPM3600
Idle RPM1000-3800
Starter volts12
SparkplugChampion H-10
Sparkplug gap0.025 inches
0.635 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.010 inches (cold)
0.254 mm
Exhaust valve clearance0.020 inches (cold)
0.508 mm
Engine Oil

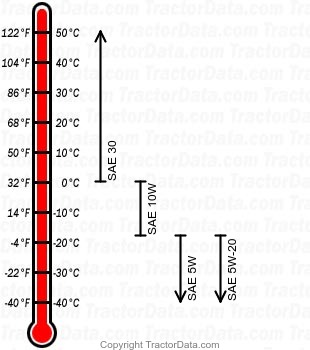

125 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
Oil change30 h
