| | 1967 - 1969 |
| 1X4/1X5 Series | | Garden tractor |
|
Series map:
72
104
105
7.0hp
10.0hp
10.0hp
| Transmission options |
| 3-speed gear |
| 6-speed creeper |
| Transmission |
| Type | shaft-driven gear
|
| Gears | 3 forward and 1 reverse
|
| Clutch | 4.5-inch dry disc
|
| Oil capacity | 3.5 qts
3.3 L
|
| Three-speed transmission operated by gear shift lever and combination clutch/brake pedal. Tractor must be stopped, and clutch used, to shift. |

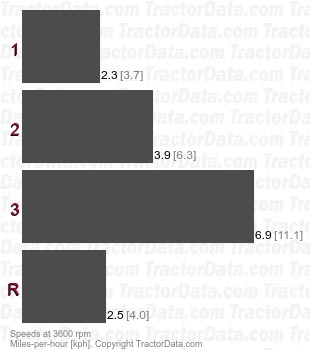

| Speeds |
|
| 104 Transmission Controls |
 |
| 1 | Clutch/brake
|
| 2 | Throttle
|
| 3 | Gear shift
|
| Transmission |
| Type | creeper
|
| Gears | 6 forward and 2 reverse
|
| Clutch | 4.5-inch dry disc
|
| Optional creeper adds an additional low range to the base transmission. Creeper drive is engaged when creeper shift lever is pulled to the rear. |

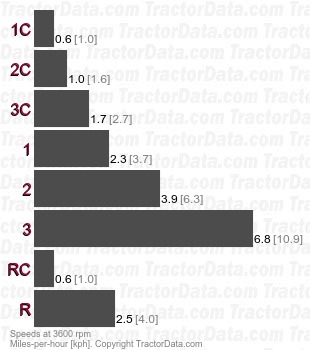

| Speeds |
|
