Lawn Tractors > Cub Cadet > LT1046

Cub Cadet LT1046 Engine



Cub Cadet LT1046 tractor photo
2005 - 2008
LT 1000 Series
Lawn tractor
Series map:
LT1045
LT1046
LT1050
19.0hp
23.0hp
25.0hp
Engine Detail
Kohler SV720
gasoline
2-cylinder
air-cooled vertical-shaft V-twin
Displacement624 cc
38.1 ci
Bore/Stroke3.03x2.64 inches
77 x 67 mm
Power (gross)23 hp
17.2 kW
Compression8.5:1
Rated RPM3600
Idle RPM1200-3600
Torque33 lb-ft
44.7 Nm
Torque RPM2600
Starterelectric
Starter volts12
SparkplugChampion RC12YC
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

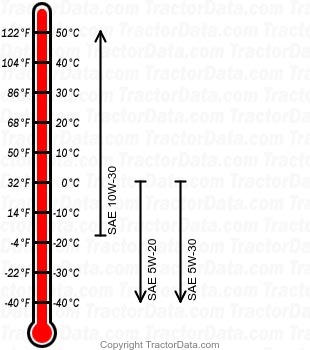

LT1046 gasoline engine oil chart
Oil capacity2.1 qts
2.0 L
Oil change100 h
