| | 1974 - 1976 |
| 600 Series | | Garden tractor |
|
Series map:
608
610
8.0hp
10.0hp
| Engine Detail |
| Briggs & Stratton 251707 |
| gasoline |
| 1-cylinder |
| air-cooled |
| Displacement | 399 cc
24.36 ci
|
| Bore/Stroke | 3.4375x2.625 inches
87 x 67 mm
|
| Power | 10 hp
7.5 kW
|
| Air cleaner | foam
|
| Rated RPM | 3600
|
| Starter volts | 12
|

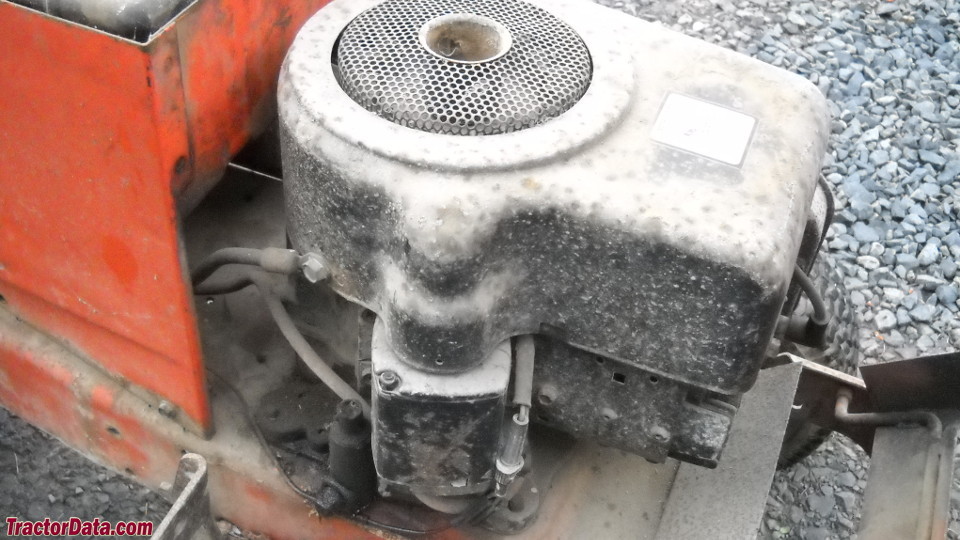

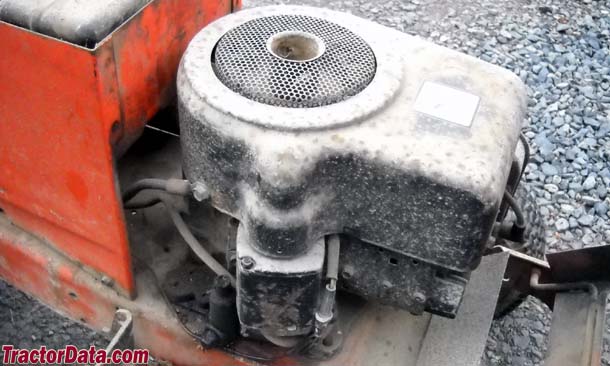

| Allis Chalmers 610 Engine |
 |
| Image courtesy of Jacob Lorenz |
