Allis Chalmers 716 Transmission


Allis Chalmers 716 tractor photo
1974 - 1979
700 Series
Garden tractor
Series map:
712
716
718
12.0hp
16.0hp
18.0hp
Transmission options
6-speed gear
hydrostatic
Transmission
Typebelt-driven gear
Gears6 forward and 2 reverse
Speeds
716  belt-driven gear speeds
Transmission
Typebelt-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity3 qts
2.8 L
Oil changeannually
Speeds

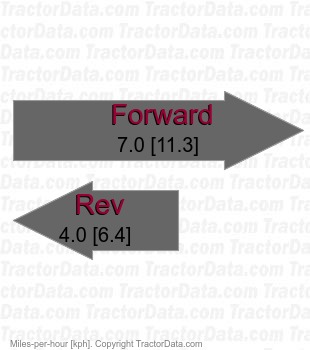

716  belt-driven hydrostatic speeds
