Allis Chalmers 716 Engine


Allis Chalmers 716 tractor photo
1974 - 1979
700 Series
Garden tractor
Series map:
712
716
718
12.0hp
16.0hp
18.0hp
Engine Detail
Kohler K341
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement588 cc
35.9 ci
Bore/Stroke3.75x3.25 inches
95 x 83 mm
Power16 hp
11.9 kW
Air cleanerdry
Rated RPM3600
Starterelectric
Starter volts12
Engine Oil

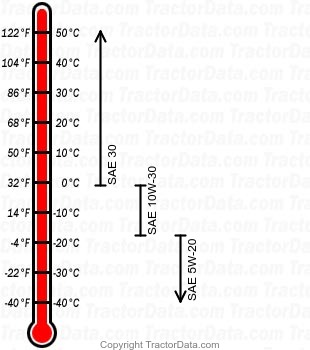

716 gasoline engine oil chart
Oil capacity2 qts
1.9 L
Oil change25 h
