Allis Chalmers 710 Engine


Allis Chalmers 710 tractor photo
1974 - 1979
700 Series
Garden tractor
Series map:
710
712
10.0hp
12.0hp
Engine Detail
Kohler K241
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement391 cc
23.9 ci
Bore/Stroke3.25x2.88 inches
83 x 73 mm
Power10 hp
7.5 kW
Air cleanerdry
Rated RPM3600
Starterelectric
Starter volts12
Engine Oil

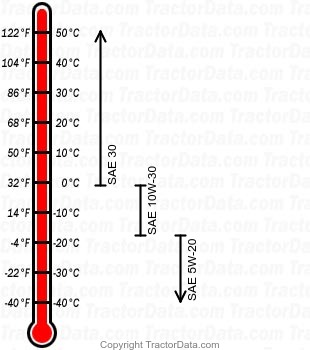

710 gasoline engine oil chart
Oil capacity2 qts
1.9 L
Oil change25 h
